HF DSC SSB MARINE ICOM IC-M802

HARGA................................................................RP 26.500.000
HARGA   LENGKAP IC M802, 2 UNIT ANTENA SHAKESPEARE 393, TUNER AT-130, KABEL RG8, POWER SUPPLY...............................   RP   39.250.000
JASA INSTALASI.........................................................RP 2.500.000
( Untuk pemasangan diluar wilayah Surabaya, biaya transportasi di sediakan oleh customer )

Large LCD with dot matrix characters

You can easily read the alphanumeric name of any of the 1355 ITU channels at a glance with the large LCD display. Nighttime operation is no problem with 10 levels (plus OFF) adjustable backlit display and keypad.

Easy to use in all conditions

The IC-M802 offers two large dials – bank and channel – for easy channel selection. Up to 16 banks of 20 (max.) each for user channels, and 17 banks for ITU channels are available.

FURUNO AIS FA-150

HARGA ......................................................  RP 92.500.000
JASA INSTALASI....................................    RP    2.500.000
The FA150 is a shipborne Universal AIS (Automatic Identification System) Transponder capable of exchanging navigation and ship data between own ship and other ships or coastal stations. The FA150 consists of a transponder unit and a compact display unit with 4.5" Silver Bright Display. The compact FA150 display is designed to accommodate a simple and space-saving installation with a user-friendly ergonomic design.

The transponder unit contains a VHF transmitter, two TDMA receivers on parallel VHF channels, a DSC channel 70 receiver, interface processor and internal GPS receiver. The GPS receiver is a 12-channel all-in-view receiver and has Differential capabilities (DGPS). The GPS receiver provides UTC reference and also provides position, COG and SOG in the event that a connected external GPS receiver fails.
The FA150 provides multiple interfaces for Radar, ECDIS and PC. The available Combo GPS/VHF antenna affords flexible, easy installation.
The FA150 provides the following data:

• MMSI (Maritime Mobile Service Identity)
• IMO Number (where available)
• Call sign & vessel name
• Length and beam
• Type of ship
• Location of position-fixing antenna on ship
• Ship's position with accuracy indication and integrity status
• UTC
• COG, SOG and Heading
• ROT (Rate of Turn) where available
• Ship's draught
• Navigation status
• Hazardous cargo (type)
• Destination and ETA (at captain's discretion)
• Short safety-related messages and free messages.

The FA150 complies with IMO MSC.74(69) Annex 3, A.694, ITU-R M.1371-1 and DSC ITU-R M.825. It also complies with IEAC 61993-2 (Type testing standard) and IEC 60945 (EMC and environmental conditions).

Standard Features

• Class-A Universal AIS complying with IMO MSC.74(69) Annex 3, A.694, ITU-R M.1371-1 and DSC ITU-R M.825
• Target ship's CPA/TCPA, COG/SOG, name on the basic scrolled LCD display
• Interfaces for radar, ECDIS, PC (Future expansion - LAN and Long Range AIS operation)
• Built-in GPS receiver for UTC synchronization and backup position fixing
• Heading information by GPS compass (SC50/SC110) or gyrocompass
• Upgrade existing Furuno radars for AIS target view by retrofitting the RP card (FR-15x5MK3, FR-21x5 and FAR-28x5 series)
• 4.5" Silver Bright LCD display
• Ship reporting capacity - 2,000 reports/minute, 4,500 reports/minute on two channels
• TDMA Transmitter
• TX Frequency - 156.025 MHz - 162.025 MHz, manual/automatic setting
• Transmitter Power - 1W / 2W / 12.5W, manual/automatic selection
• TDMA Receiver
• RX Frequency - 156.025 MHz - 162.025 MHz by 2 channels
• DSC Receiver
• RX Frequency - CH70 (156.525 MHz)
• 12-channels internal GPS Receiver w/ Differential (DGPS)

Shipping Information

• 22 lbs, 1 Carton

Power Requirements

• Display Unit: 12-24 VDC, .3-.15 A
• Transponder Unit: 12-24 VDC, 7-3.5 A

STANDARD COMPASS TABLE T150B

HARGA : RP 9,000,000

AIS ICOM MA-500TR

HARGA..................................................................RP 19,500,000

JASA INSTALASI ........................RP 2.500.000 ( Untuk pemasangan diluar wilayah Surabaya, biaya transportasi di sediakan oleh customer )

Class B AIS transponder

The MA-500TR is a Class B AIS transponder for Non-SOLAS vessels such as pleasure craft, work-boat and small vessels. Your vessels information will automatically be transmitted at fixed intervals or under base station control. The MA-500TR receives dual AIS channels (Ch. 87B and Ch. 88B) simultaneously and receives both Class A and Class B AIS information. Transmitted information by MA-500TR is:

• MMSI code
• Vessel name
• Call sign
• Type of ship
• GPS antenna position
• Ship's position
• SOG (Speed over ground)
• COG (Course over ground)
• UTC date and time
• GPS antenna type
• PA (Position Accuracy)

GPS receiver comes with MA-500TR

The MX-5000 GPS receiver is a 12 channel parallel GPS receiver with SBAS function.

Other features

• Full dot-matrix display with adjustable backlight and contrast
• IPX7 waterproof protection (up to 1m depth of water for 30 minutes, except connections)
• Self diagnosis function
• Flush mount installation with optional MB-75
• Slow warm function

AUTOMATIC ANTENNA TUNER ICOM AT-130

HARGA..........................................  RP 7,500,000

Tune in your HF marine world
Suitable for many vessels
The versatile AT-130 can be used with a variety of vessels, even smaller boats that cannot use a long antenna element. For example, the AT-130 will match a 7 m (23 feet) long wire antenna across the marine band in the 1.6 - 27.5 MHz range.
Automatic tuning
No manual tuning is needed. Just push the [TUNE] switch on an Icom HF marine transceiver; the AT-130 adjusts the antenna and the transceiver to the minimum SWR in any frequency on an HF marine band. The AT-130 allows you to transmit with strong RF output power, and is perfect for maritime mobile operations.
Weather resistant
The AT-130 is housed in a durable, completely weather-resistant acrylic case with rubber gaskets. This allows it to be conveniently installed near the antenna element base.
For ICOM HF marine transceivers
ICOM's sophisticated AT-130 easily matches Icom HF marine transceivers. The AT-130 easily interconnects with an Icom HF marine transceiver. AT-130 installation is simple. No adjustments are necessary. Just connect the control cable and antenna wire and go!
Quick tune-up
Improved tuning performance...the tune-up time is less than 3 seconds in any frequency on an HF marine band. In addition, the AT-130 has 8 convenient memories to store tuning information. Retuning for a memorized frequency takes about 1.5 seconds. This allows you quick trouble-free frequency changes.
Low power tune-up
The AT-130 emits very little output power (just 300 mW) during the tuning process. This reduces the possibility of causing interference to other stations using the frequency.
Specifications

• Dimensions: 230(W) x 340(H) x 80(D) mm; 9.1(W) x 13.4(H) x 3.1(D) in (projections not included)
• Weight: 2.7 kg; 6.0 lb
• Usable Temperature Range: -30°C ~ +60°C
• Rated Voltage: 13.6 V DC +/-15% (negative ground) (supplied from an Icom HF marine transceiver)
• Current Drain (at 13.6 V DC): 2 A
• Frequency Coverage: 1.6~30 MHz (with the antenna length 7 m (23 ft) or longer)
• Input Impedance: 50 ohms (unbalanced)
• Max. Input Power: 150 W (PEP)
• Input Power During Tuning: 10 W
• Auto Tuning Time: 1.5 sec. (returning for a memorized frequency), typically 2~3 sec. (when operating band has been changed)
• Auto Tuning Accuracy: VSWR 2.0:1
• Insertion Loss: 0.5 dB (with a 50 ohms load, after tuning)

HF MARINE SSB ICOM IC-M710

HARGA.............. Rp  17.500.000 ( radio saja )

ANTENNA TUNER ICOM AT-130.................Rp 7.500.000
ANTENNA SHAKESPEARE 393....................Rp 7.900.000

HARGA LENGKAP RADIO M710,  ANTENA 393, TUNER AT130, KABEL RG8, POWER SUPPLY ..... Rp  45.000.000
JASA INSTALASI ........................RP 1.500.000 ( Untuk pemasangan diluar wilayah Surabaya, biaya transportasi di sediakan oleh customer )

Simple, dependable worldwide communications at an affordable price.

1136 channels

160 programmable, 242 ITU SSB duplex, 72 ITU SSB simplex and 662 ITU FSK duplex channels are available.

Rugged construction

The highest quality components are used throughout. Constructed in a die-cast aluminum chassis with surface mount components, the IC-M710 is designed for long hours of operation in the harsh marine environment.

Alphanumeric readout

The large, easy-to-read display shoes status at a glance. Seven characters can be programmed into each memory channel to conveniently display station names, ship names, etc.

150 W of output

A full 150 W (PEP) of output power is available for reliable long distance communication. A large cooling fan, in combination with the aluminum chassis, allows continuous transmission at full output power—even during demanding RTTY (radio teletype) and NBDP (narrow band direct printing) operation.

Automatic tuning function

An automatic tuning function is available when using the IC-M710 in combination with the optional AT-140 for quick and easy antenna tuning. Tuning is fully automatic. When you push the PTT on a new frequency, the antenna tuner quickly tunes the antenna automatically.

VHF GMDSS ICOM IC-GM1600

HARGA : ...................................... RP 7.850.000

BATTERY BP234...........................RP. 3.450.000

GMDSS Portable for Survival Craft

Meets the strict environmental requirements for survival craft radio

The IC-GM1600 meets temperature, thermal shock, vibration and drop resistant (from 1 m height) requirements. After passing those environmental tests, the IC-GM1600 sustains 1m depth waterproof construction specified with IMO resolutions A.809(19), A.694(17) and IEC 61097-12.

Optional high capacity Lithium battery, BP-234, has superior low temperature characteristics

Provides more than 8 hours operating time even at -20°C
(Duty cycle: Tx: Rx: Stand-by = 6: 6: 48)

Large keypad with positive button action

Wide viewing angle LCD display

Other features

• One touch access to Channel 16 and call channel
• Highly visible yellow colored body
• Bright LED indicator on the top of panel
• Optional VOX headset for on-board use

MARINE RADAR FURUNO FR 1935 48 NM

FURUNO MARINE RADAR 1835   36 NM  RADOME ANTENNA  ..........................................................................................RP 72.500.000
FURUNO MARINE RADAR 1935   48 NM  OPEN ANTENNA  ..........................................................................................RP 95.500.000
FURUNO MARINE RADAR 1945 64 NM OPEN ANTENNA
...........................................................................................RP 107,500,000
JASA INSTALASI ........................RP 2.500.000 ( Untuk pemasangan diluar wilayah Surabaya, biaya transportasi di sediakan oleh customer )

Open antenna allows superb detection to enhance safety on waters

 The new 1935 Radar is a high contrast 10.4" color LCD radar designed for a wide range of vessels including pleasure craft, fishing boats and work boats. This new radar offers crystal clear target presentation with automatic Gain/Sea/Rain controls to deliver noise-free radar presentation. It features superb detection of even small targets both at short and long range. It also boasts all-new display modes which will assist you with navigating safely on all waters. The 1345 allows you to see far away objects before they are visible, and allows you to see in the dark, fog or during periods of obstructed visibility in any weather condition. With its advanced signal processing technology, the 1935 demonstrates a substantial increase in target detection, particularly for close range targets. The 1935 can be interconnected with other navigation equipment such as chart plotters and sounders through Furuno's programmable NMEA 0183 interface system, affording operators the ability to expand their boat's system as needed.
AIS/ARPA Display:
With the optional ARP11 internal ARPA PCB, up to 10 ARPA targets can be tracked and overlaid on the radar screen to assist the operator in monitoring other vessel movements. With the connection of an external AIS receiver, up to 100 AIS may also be tracked. A variety of navigational information such as vessel name, speed, ROT, draft, and the destination of the selected targets can be included in real time. Unlike ARPA targets, AIS targets are visible on-screen even if they are obscured by large ships or islands, since AIS works by VHF transceiver system and does not require line-of-sight. Both ARPA and AIS require heading input.
Off-Center Mode:
With a push of the “OFF CENTER” button, own ship position can be shifted to a pre-registered point on the screen, allowing the operator to focus on a specific area ahead of or around the vessel without losing track of the position.

Features

• Antenna： Open 100 cm (39.4")
• Output Power： 4 kW
• Antenna Rotation Speed： 24 or 48 rpm
• Range： 0.0625 ～ 48 NM

• AIS/ARPA target-tracking with zoom display function*1
• True View mode*2
• Enhanced auto tuning/gain/anti-clutter controls
• True Echo Trail to present true target movements*3
• Full Screen Mode lets operators observe a wider overview around the vessel

Shakespeare Style 5101 VHF MARINE ANTENNA

 HARGA ...................RP 1,950.000

Shakespeare Style 5101
8 feet  VHF Marine Band  6dB
Center-fed 1/2-wave coaxial sleeve
Shakespeare’s most economical 8ft antenna package. The Style 5101 is a great, basic 6dB antenna for day-to-day cruising in calm to moderate seas. The antenna has an integral polycarbonate Lift 'n Lay mount for deck mounting, and comes with a leveling plate and installation hardware.

• Brass and copper elements
• Integral deck mount
• Includes 15ft RG-58 cable and a PL-259 connector
• Compact size
• One section

Best applications include: calm to moderate seas; for small to medium and similar types of vessels.

Shakespeare Style 393 HF ANTENNA

HARGA :  Rp 7.850.000
23’ (7m) SSB

Whip antenna with conductors running full-length (no loading coil)
Three-section convenience, in an outstanding performer. The Style 393 antenna is electrically the same as the industry standard Style 390, but it’s designed in three sections, so it can be shipped conveniently by UPS. For use in calm to moderate seas. Reinforced insulating qualities allow input power up to 1 kw. Conductors are permanently sealed in Shakespeare white fiberglass

• Chrome-plated brass ferrule with standard 1in-14 thread
• Side feed termination band
• Three sections
• Power input up to 1 kw
• Suggested mount: Style 409-R or 410-R Mounting Kit (each sold separately) for deck or side mounting
• 3 Sections: Base 92in; Center 92in; Tip 92in

SAMYUNG SNX 300 NAVTEX RECEIVER

HARGA : ............................................................ RP  19,950,000

 JASA INSTALASI ........................RP 1.500.000 ( Untuk pemasangan diluar wilayah Surabaya, biaya transportasi di sediakan oleh customer )

Features
New model designed to IMO resolution and performance standards effective from July 1st.2005
(IMO Resolution MSC.148(77) ITU-R, M.540-2, M.625-3, IEC-61162).
English channel(518KHz) ﹠ local channel(490KHz/4209.5KHz) are simultaneously receiving by two receivers built-in.
Receiving messages sets-up from outer navigational equipment and channels.
Storage for over 200 advisory including 8,000 receiving letters in average length per channel.
50 messages permanently stored per channel and 72-hour-long storage of receiving letters.
Automatic power blockage run by voltage protection circuit.
Interfaced to INS(Integrated Navigation System) according to IEC-61162.

Specifications

▶ GENERAL
• Temperature : -15℃ to +55℃
• Humidity : 95% at 40℃
• Power supply : DC 10 ~ 36V, 12W@24V
• Size : 255W×163H×75D (mm)
• Weight : 2.6kg

▶ RECEIVER
• Receiving frequency : 518KHz(English), 490KHz or 4209.5KHz(Local)
• Receiving method : F1B NAVTEX broadcast
• Receiving sensitivity : 2㎶ e.m.f(50Ω), 4% error rate
• Frequency accuracy :± 10㎐
• Antenna impedance : 50Ω(Active), Power 9V (inner supply)
• Message : A:navigation alarm, B:weather alarm, C:iceberg alarm, D:R&S, E:weather forecast, F:Pilot message,G:AIS message,
                   H:LORAN message, J:SATNAV message, K:Other navigational aid message, L:additional navigation alarm, Z:no message

▶ CONTROLLER & DISPLAY
• Display : 5.6 LED, 320 dots × 240 dots
• Display type : Selectable transmitter & receiver, Receiving message, Storage & Control of message, Frequency display,
                        Adjustable LCD & keyboard brightness,Self-diagnosis and alarm fuction available
• Storage capability : 200 per channel including 1,600,000 letters
• Permanent message storage : 50 including 400,000 letters
• Message storage duration : Max. 72 hours

▶ PRINTER• Print method : thermal serial dot
• Character size : 9dots (high)×7dots (wide)
• Speed : 52.5 cps(Normal), 80 cps(Condensed)

SAMYUNG VHF DSC STR 6000A

HARGA :  ......................... RP  13,600,000    ( RADIO SAJA )
HARGA :   .........................RP   19,500,000   ( Lengkap : 2 unit antenaSHAKESPEARE 5101, kabel rg 8, power supply 30 Amper )
JASA INSTALASI ........................RP 1.500.000 ( Untuk pemasangan diluar wilayah Surabaya, biaya transportasi di sediakan oleh customer )

VHF-DSC Marine Radio (Class A)Manufacturer: Samyung Enc., South Korea
The Samyung STR-6000A is a high quality, all-in-one marine VHF radiotelephone designed to comply with the GMDSS carriage requirements for safety and general communications. All the necessary functions such as a 25W VHF radiotelephone, a Class A DSC modem and a CH 70 Watch Receiver are incorporated into the compact transceiver unit. The STR-6000A offers simplex/semi-duplex voice communications with high sound quality thanks to its speaker designed to lower the strain.
Includes all channels specified in ITU-RR(NOAA Weather channel)
DUAL/TRIPLE WATCH function and TAG SCAN function built-in.
20 MMSI number in 2 groups-MMSI number save, edition and call function.
Latitude/Longitude display function when connected with GPS.
Over 160 characters can be seen in one large LCD.
Priority selection of Ch.16 and adoption of noise free mic.
Compact ﹠ light design for any-where installation.
Features:• Compliant with GMDSS and  ITU standards
• Built-in Class A DSC receiver
• External GPS receiver connectable
• Priority selection of Ch 16
• Assigned watch receiver for channel 70
• Dual / Triple Watch function
• Easy installation

Features

• Includes all channels specified in ITU-RR(NOAA Weather channel)
• DUAL/TRIPLE WATCH function and TAG SCAN function built-in.
• 20 MMSI number in 2 groups-MMSI number save, edition and call function.
• Latitude/Longitude display function when connected with GPS.
• Over 160 characters can be seen in one large LCD.
• Priority selection of Ch.16 and adoption of noise free mic.
• Compact & light design for any-where installation.

Specifications

▶ GENERALS
• TX Frequency : 156.025~157.425MHz
• RX Frequency : 156.050~163.275MHz
• Communication Mode : Simplex and Semi-Duplex
• Channel Number : 183 channels (ITU 55, USA 57, CAN 61, WEA 10)
• Type of Emission : FM(16K0G3E), DSC(16K0G2B)
• Freq. Stability : ±10 ppm(-20℃ ~ +60℃)
• Antenna Impedance : 50Ω
• Consumed Currency (13.6V) : TX high 5.5A max Max. Audio 1.5A max
• Power Supply : DC 24V (DC 18 ~ 31.2V) AC 100 ~ 120V, AC 200 ~ 240V

▶ TRANSMITTER UNIT
• Antenna Output : HIGH/25W, LOW/1W
• Starting Mode : SYNTHESIZER mode
• Modulation Mode : VARIABLE REACTANCE FREQUENCY MODULATION
• Occupancy Band Width : Within :16KHz
• Max. Freq. Deviation : ±5KHz
• Spurious Emission : Over 70dB
• MIC Input Impedance : 2㏀

▶ RECEIVER UNIT
• Receiving Mode : DOUBLE CONVERSATION SUPER HETERODYNE
• Receiving Sensitivity : 0.32㎶ (20dB SINAD), 0.22㎶ (12dB SINAD)
• Squelch Sensitivity : Less than 0.22㎶
• Spurious Emission : Less than -70dB
• Residual Noise Level : Less than -40dB
• Audio Output : 4.5W / 4Ω

▶ DSC WATCH KEEPING RECEIVER
• Receiving Freq. : 156.525MHz
• Radio Wave Mode : G2B
• DSC Modulation Speed : 1200baud(Within 600Hz ±30×10-6 Freq.)
• DSC Modulation Mode : FSK
• DSC Modulation Quotient : Within m=2±10%
• Adjacent Channel Select : Less than 10-2 Bit error rate
• Spurious Response : Less than 10-2 Bit error rate
• Inter-Modulation Response : Less than 10-2 Bit error rate
• Dynamic Range : Less than 10-2 Bit error rate

SAMYUNG STV-160 GMDSS MARINE PORTABLE RADIO

 HARGA :  RP  8,250,000
BATTERY NON RECHARGEABLE  SPL80.......   RP 3,800,000
BATTERY SPN72.......................................................RP  2,750,000

Features

• Compliant with ITU-R, IMO Regulation
• ITU. USA, CANADA Channel Available
• Weather Channel Available
• Memory Scanning Function
• Dual Scanning Function
• Waterproof at 1m Depth for 5 Minutes
• Long Life Lithium & NiMH Battery
• Power Saving Functions
• Easy Operation with a Hand in Glove

Specifications

Channels	All current USA, International and Canadian channels, plus 10 WeatherChannels
Channel Spacing	25KHz
Supply Voltage	7.2 Vdc 1350mAH
Current Drain	Standby 40mA  RX:190mA st 0.5W audio output(1KHz)  TX:Less than 1A at 2W, 0.7A at 1W, and 0.6A at 0.5W
Operating Temperature Range	-20℃ to +60℃
Battery Life	8 Hours (TX :10%, Standby : 90%)
Dimensions	125mm(H)X65.1mm(W)X36mm(D)/4.92”(H)X2.55”(W)X1.41”(D)
Weight	420g

SAMYUNG SART SAR-9 RADAR TRANSPONDER

GMDSS 9 GHZ SEARCH & RESCUE RADAR TRANSPONDER
HARGA :  RP  12,000,000
Samyung SAR-9 is a radar transponder, which is operated in 9,2 - 9,5 Ghz marine radar band. When a radar signal is receive from a sar craft, the SAR-9 automatically start to transmit a response signal echoing to that radar.  Sar craft can identify  SART location on the radar screen with 12 in-line dots. Once activated, the SAR-9 will remain in standby condition for 96 hours followed  by minimum 8 hours transmisions.

Features

• Complied with related IMO/GMDSS requirements
• Designed for reliable operation in the roughest of marine evironments
• Lightweight and rugged construction is suitable for placing at liferafts.
• Complete set with a liferaft mounting kit
• Efficiently assisting ship or survival craft rescue operations

Specifications

• Frequency : 9.2 ~9.5 GHz
• Polarization : Horizontal
• Vertical beam width : +12.5 Degrees
• Azimuthal beam width : Omnidirectional to ±2dB
• Radiated power : > 400mW (+26dBm)
• Form of sweep : Sawtooth(12 sweeps)
• Pulse emission : < 100㎲
• Forward sweep time : 7.5㎲ ± 1㎲
• Return sweep time : 0.4㎲ ± 0.1㎲
• Recovery time : < 10㎲
• Response time : < 0.5㎲
• Effective sensitivity : better than -50dBm
• Duration of operation : 96 hours in standby condition followed by a minimum 8 hours of transmissin while being
  continuously interrograted by an X-band radar with a pulse repetition frequency of 1KHz at extreme temperatures
• Battery life : 5 years
• Temperature range : Operating -20℃ to 55℃, Storage -30℃ to 65℃

ECHO SOUNDER / FISH FINDER FURUNO FCV 688

HARGA UNIT SAJA..........RP 19,500,000
HARGA KOMPLET...........RP  22,500,000 ( Sudah termasuk power supply 30 Amper, kabel 100 meter 3 x 1,5mm )
Jasa instalasi........................Rp 3.500.000

Equipped with Furuno's latest technology, the Bottom Discrimination Function - Analyze bottom structure!

The FCV-627 knows fish size and bottom structure under your boat !

ACCU-FISH™ - A unique fish size analyzer based on the latest digital technology

White Line feature - Discriminate fish lying near the bottom

Configurable Alarm function (depth, fish echoes, etc.)

Post-processing Gain Control applied to all echoes displayed on the screen

Share and display information on a chartplotter
*Required connection to chart plotter.

Fast transmission rate of 3,000 PRR (Pulse Repetition Rate) per minute (at 5 m depth range)

Clear visibility even when wearing polarized sunglasses.



DISPLAY	5.7" COLOR LCD
MODE	Single frequency (50 or 200 kHz),Dual-frequency, Zoom, Nav data,A-scope, Marker zoom, Bottom zoom,Bottom-lock, Bottom Discrimination,ACCU-FISH™
SINGLE/DUAL	DUAL
FREQUENCY	50/200 kHz
POWER	600 W
POWER SUPPLY	12-24 VDC

ICOM IC-M801 GMDSS MF/HF DSC SSB RADIO

HARGA..........................RP 49.500.000 ( RADIO M801 + TUNER AT 141 )
HARGA LENGKAP : RP 60,500,000 ( RADIO - TUNER AT141 - 2 UNIT ANTENA 393 - KABEL RG8 - POWER SUPPLY 60 AMPER )
DESCRIPTION
MF/HF Marine Transceiver
The IC-M801GMDSS is a complete GMDSS package, which includes automatic antenna tuner, telephone handset and external speaker etc. Together the package meets both GMDSS and MED 96/98/EC, “wheel mark” requirements for SOLAS regulated vessels.
Meets GMDSS requirements
The IC-M801GMDSS is designed for Class A DSC operation. Together with the standard AT-141GMDSS antenna tuner, it provides a complete GMDSS MF/HF communication system as stipulated for Commercial SOLAS regulated vessels voyaging in the A2 sea area. The radio also meets MED 96/98/EC, "wheel mark" requirements for European merchant ships.
Built-in ITU Class A DSC
An independent DSC receiver constantly watches MF/HF DSC channels, while using another channel. The DSC allows you to call intended ship(s) or coast station(s) directly as well as all ships in the geographic area. A total of 100 MMSI IDs can be stored with a 10-character name. In addition, the self test function allows you to check the DSC functions.
Built-in DC-DC converter
The IC-M801GMDSS has a built-in DC-DC power converter, which provides stable 13.6V DC converted from a 24V DC power supply. A floating ground system is employed.
AT-141GMDSS Automatic Antenna Tuner
The AT-141, automatic antenna tuner, tunes all frequencies in all modes. It easily connects to the IC-M801GMDSS with the optional shielded cable. If the tuner cannot tune the antenna, the IC-M801 GMDSS bypasses the tuner and displays an alert on the display.
125W (PEP) of output power
A stable 125W of output power can provide reliable long distance communication. The large cooling fan ensures stable internal temperature even during high duty operation such as RTTY or E-mail operation.
* 85W (PEP) between 1.6–3.999MHz
Simplified operation
All channels are grouped in 20 channel groups. Large independent group and channel knobs provide quick and easy channel selection. You can also directly enter a channel number from the 10-keypad.
Large backlit, dot-matrix LCD display with 10 selectable lighting levels
The IC-M801EGMDSS’ front panel sports a full keypad, allowing direct frequency entry. The large dot-matrix display offers 10 levels of backlighting and is easy to see, day or night. Large dials and buttons allow for easy operation in rough seas. Icom have included a headphone socket on the front panel, allowing the operator to operate the radio without disturbing others.
General coverage receiver
Wide band, general coverage receive capability is available from 0.5 to 29.999MHz.
Numerous operating modes
The IC-M801GMDSS provides SSB, AM, CW, FSK and AFSK mode operation. The advanced DSP provides flexible filter settings and optional filters are no longer required for narrow band mode operation.
1195 channels
The IC-M801E/GMDSS is pre-programmed with 1035 international and domestic channels, plus 160 user-programmable "favourite frequency" channels that can be programmed into the radio by an authorised Icom dealer.
Versatile configuration
The controller and speaker are separated from the main (RF) unit. The supplied 5m separation cable or optional 10m separation cable (OPC-1575) can be used with the controller.
Rugged construction
The main unit is covered with a rugged aluminium casing, protecting internal parts from impact or salt corrosion. With the optional stainless steel one-action bracket, the main unit can be tightly installed or easily removed from a flat surface.
Voice squelch control
The VSC (Voice squelch control) function* only opens the squelch, when the radio detects voice components contained in the signal, while ignoring noise or an unmodulated signal.
* J3E and H3E mode only.
Standard Accessories
Supplied accessories include AT-141GMDSS Automatic Antenna Tuner, separation cable, HS-98 telephone handset, SP-24 external speaker, mounting bracket kits, DC Power cables, ACC plugs and spare fuses. The whole package meets MED 96/98/EC, "wheel mark" requirements for European merchant ships.
An optional HM-135 can be assigned a "P (programmable)" button from which one of the radio functions such as tune, mode or scan can be selected. This function can then be remotely controlled from the microphone.
Versatile extensibility
The IC-M801GMDSS has various connectors to connect with external equipment.

•GPS connector
•D-SUB connector for NBDP
•IEC61162-1 connector for PC remote control
•Printer connector
IC-M801GMDSS Additional Features
•CW full break-in and semi break-in
•Scan resume, program scan and adjustable scan speed
•Max 160 programmable channels

ECHOSOUNDER KODEN CVS 126

HARGA UNIT SAJA...................Rp    13,000,000
HARGA KOMPLET.( Termasuk power supply 30 Amper, 100 m kabel 3 x1,5mm ) .Rp  17,400,000
Jasa instalasi ................................Rp 2,500,000

Digital Echo Sounder that always shows a clear image!

Features

・ Uses digital signal processing Koden’s advanced digital signal processing technology provides both higher resolution in shallow areas and high gain in deep areas. ・ Store the Image You can store up to 10 images. Connecting the optional GPS sensor also allows you to display the position on the stored image. ・ Sona-Tone This function uses sound to notify users when fish or the school is located. ・ Automatic functions make operation simple Equipped with a full range of automatic functions. (GAIN, RANGE, SHIFT) ・ High-performance 5.7-inch LCD provides good visibility. The CVS-126 is also highly water resistant. High visibility and drip-proof performance (IPX5) mean the CVS-126 can be installed in an open bridge. ・ Energy-efficient design This is an energy-efficient model that achieves low power consumption using a white LED.

Main Specifications

Main functions Zoom, Auto, A-scope, Presentation colors: 64, 16, 8 colors, Store image, Fishing Hot Spot, Sona-Tone Basic range 2.5 to 800 Meter/ Fathom/ Italian Fathom 10 to 2800 Feet Output power (RMS) 600 W Output frequency Dual 50/200 kHz Water protection IPX5 Dimensions 208(H) x 182(W) x 130(D) mm Weight 1.3 kg Power supply 10.8 to 31.2 VDC

GARMIN AQUAMAPS 80X CHARTPLOTTER MULTIFUNCTION DISPLAY

HARGA :  RP 21,500,000  ( UNIT SAJA )

The AQUAMAP 80xs keyed chartplotter/sonar combo has a 8” color SVGA display and comes preloaded with a worldwide basemap. HD-ID, CHIRP and ClearVü with CHIRP sonar technology are built-in allowing you the flexibility to choose from several optional transducers.

• Keyed chartplotter/sonar combo with 8” color SVGA display
• Preloaded worldwide basemap
• Built-in Garmin HD-ID™ 1 kW sonar, CHIRP and ClearVü™ scanning sonar with CHIRP technology
• High-sensitivity internal 10 Hz GPS/GLONASS receiver
• Supports all Garmin marine radar

Featuring a built-in radar port, AQUAMAP 80xs can be interfaced with Garmin’s line of affordable GMR™ marine radar systems (sold separately). Whether you’re adding radar now or in the future, you’ll enjoy the convenience of plug-and-play installation as well as the power, range and high-definition targeting of our proven radar offerings.

GMR™ 18 xHD Radome

When used with a compatible CHIRP transducer (sold separately), AQUAMAP 80xs displays crystal-clear sonar images detailing fishing hot spots, ship wreckage or a diving location. With Garmin CHIRP technology, you get remarkable target separation and resolution at extraordinary depths, and can dial into specific frequencies to target certain species of sport fish. Bottom contours are more visible, even at speed, and signal noise can be suppressed at greater depths to provide a more timely interpretation of what’s below for safer navigation and better fishing.

FURUNO DIGITAL HEADING SENSOR PG500

HARGA : RP 27,500,000

Transmitting Heading Device with enhanced stability by a solid-state rate gyroscope

The PG-500 is a rate compensated heading sensor that incorporates innovative electromagnetic compass technology for highly accurate and stable readouts of your ship's heading. These sophisticated components are contained within a rugged, compact case. Unique design elements make the PG-500 virtually maintenance-free and easy to install.

Features

• Inexpensive heading sensor with the highest accuracy and stability in this class of equipment

• Automatic correction for local magnetic variation with an appropriate GPS navigator or manual correction with an optional remote display RD-30

• High stability by a solid-state rate gyroscope

• Compact waterproof housing with visual status indicators for a simple installation

• Three heading data output ports: two IEC/NMEA ports, one AD-10 port

• High speed heading data output in IEC 61162-2 format





  Specifications

  GENERAL

  Heading Accuracy	±1.0° (horizontal)
  Heading Resolution	0.1°
  Follow-up	25°/s rate-of turn
  Interface	I/O Port (Input): 1 port I/O Port (Output): 2 ports (one port drives 3 outputs) Output: FURUNO AD-10 format, IEC 61162-1 (NMEA0183 Ver2.0), HDG, HDT, HDM Input: IEC 61162-1 (NMEA0183 Ver1.5/2.0), RMC, VTG
  Temperature	-15°C to 55°C
  Waterproofing	IPX5 (IEC 60529), CFR-46 (USCG standard)
  Power Supply	12-24 VDC: 120-30 mA
  Weight	0.3 kg

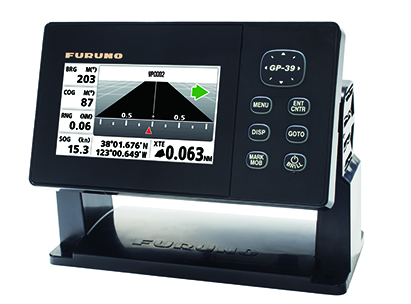

GPS FURUNO GP 39

HARGA ; RP. 8,750,000

Highly accurate position fixing GPS navigator with clear color LCD

The FURUNO GPS navigator GP-39 provides accurate and reliable position fixing, thanks to a 12-channel
GPS receiver combined with integrated SBAS (WAAS/EGNOS/MSAS) technology.
The GP-39 has various display modes (Plotter, Highway, Steering, NAV data, Satellite monitor and 2 user customizable modes) on the 4.2" color LCD. Up to 3,000 points of ship track, 10,000 waypoints and 100
routes (each with up to 30 waypoints) can be stored. The waypoint and route data can be exported/imported via a USB flash drive or signal converter.
The GP-39 can be networked with a fish finder, sonar, radar or other navigation equipment for feeding highly accurate navigation data.
Waypoint, route data and setting information can be exported/imported via a USB ash drive between GP-39 units. The waypoint and route data in GP-32 can be transferred to GP-39 by means of signal converter. You can backup information, or share useful information between vessels.


 The improved hanger allows the display unit to be mounted or un-mounted easily. The display unit can be carried in the bag (standard supply).

GARMIN RADAR GMR 18HD

HARGA :  RP. 21,000,000

Our next-generation, 4 kW high-definition GMR 18 xHD dome radar pairs ease of use with advanced open-array features. Its intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how.
The GMR 18 xHD delivers higher resolution than our previous generation 18” dome radars. New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings, providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment. Dual range operation allows fully independent split-screen display of far and close radar views in full 8-bit color (select chartplotters); range of 48 nm. Optional “No Transmit Zone” can protect areas behind the radar from being radiated while providing full forward-looking radar capability. This makes installation more flexible by providing more suitable installation options on your boat.

• 4 kW high-definition 18” dome radar
• Pairs ease of use with advanced open-array features
• 48 or 24 RPM rotation speeds for fast screen refreshes, auto adjusts as needed based on range
• 48 Mile max range setting
• No complex user settings, easy to install and start using

Compatible Device

AQUAMAP® 80xs

The AQUAMAP 80xs keyed chartplotter/sonar combo has a 8” color SVGA display and comes preloaded with a worldwide basemap. HD-ID, CHIRP and ClearVü with CHIRP sonar technology are built-in allowing you the flexibility to choose from several optional transducers.

KODEN ECHOSOUNDER CVS128

..

CVS-128 8.4-inch Color LCD Echo Sounder　

HARGA..........................RP 29,500,000

Features

・ Koden Digital Filtering (KDF™) Eliminates clutter by filtering out the noise to provide a clearer more detailed image that enhances fish targets in shallow and deep depths, making it easier to differentiate between baitfish, larger fish, schools of fish and the sea floor. ・ 600 W or 1 kW Output Power The 1 kW is more suitable for detection at deeper bottom. ・ RGB Output to VGA Monitor RGB output for connecting optional external VGA monitor. ・ Exclusive Sona-Tone Identifies what’s under your boat with different sounds for fish and schools of fish. ・ Easy Operation Easy access to all system functions with backlit keypad, programmable function keys, comprehensive menus, and dedicated rotary knobs for instant control of HF and LF Gain. ・ Store Image Stores up to 10 screen images in built-in memory for recall later by “one-touch”. ・ Fishing Hot Spot Leads you back to your favorite fishing hot spots or other previously saved positions in memory with input from optional GPS sensor. ・ Auto Function Digitally selects the most reliable setting for such functions as Gain, Range, and Shift. ・ Sunlight Viewable Brilliant 8.4” color LCD display with 8, 16, or 64 color levels and an anti-reflective coating for excellent readability in direct sunlight. ・ Easy Installation Sleek, waterproof (IPX5 rating) case design with built-in overhead and flush mounting for easy installation.

Main Specifications

Main functions Zoom, Auto, A-scope, Presentation colors: 64, 16, 8 colors, Store image, Fishing Hot Spot, Sona-Tone Basic range 2.5 to 1200 Meter 10 to 3600 Feet 2.5 to 700 Fathom/ Italian Fathom Output power (RMS) 600 W/ 1 kW Output frequency Dual 50/200 kHz Water protection IPX5 Dimensions 263(H) x 274(W) x 133(D) mm Weight 3.2 kg Power supply 10.8 to 31.2 VDC
